What this DD15 ECM repair service covers

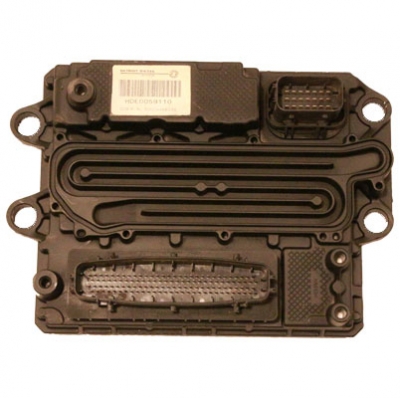

This is a repair service for the Detroit DD15 engine control module. You send us your own unit, we rebuild it, and that same unit comes back to you. You are not buying a replacement module on this page.
On Detroit engines the engine control module is the MCM, short for Motor Control Module. It works alongside the CPC, the Common Powertrain Controller, and the ACM, the Aftertreatment Control Module. The three control different systems, and this page covers the MCM.
Sellers use ECM, ECU and MCM to mean the same box, which is why searching for one turns up the others. If the unit you pulled is the engine controller off a DD15, this is the right page.
DD15 part numbers we repair
Diesel ECM Exchange services these DD15 part numbers: A0004466035, A0004469135, A0014462835, A0044463940, A0054467740, A0054467840 and A0074463440. Match the number printed on your own module against that list before you order.
A number on this list means we repair that unit. It does not describe what the number fits. Detroit assigns part numbers across more than one engine, so the number on your module is the thing to match, not the badge on the truck.
The rest of the Detroit range sits on the Detroit Diesel modules page.
MCM, CPC or ACM: which module this page covers
This page covers the MCM. The CPC and the ACM are separate modules carrying separate part numbers, and a repair on one does not address a fault on another.
Not every MCM fault code means failed hardware. Daimler bulletin 20TS-09, published in November 2020, records that on GHG17 DD15 engines fault code SPN 3711 FMI 31 becomes more frequent in colder weather during parked regenerations, and attributes it to a calibration issue in the MCM software rather than a failed module.
That is one documented code out of many, and it is worth knowing before you ship anything. A module that needs a software calibration does not need a rebuild.
What happens to your DD15 module on the bench
Every unit that reaches the bench gets the same process. The components that failed are swapped and resoldered. The ones with a history of failing soon after go in the same visit, not just the part that quit. Cold solder joints get tracked down and reflowed.
Then it is tested. The module proves it communicates, proves it accepts programming, and proves the programming and parameters hold in storage rather than simply loading. A final voltage check happens before the return shipment.
That is the process end to end. Diesel ECM Exchange does this work on engine computers across the heavy truck and diesel pickup range.
Repair, rebuilt or used: how the DD15 options compare
There are several ways to get a working module back in the truck, and they suit different situations.
- Send yours in for repair. This page. Your own module is rebuilt and returned. The trade-off is that the truck is down for the round trip, not only the bench time, and you have to pull the module before you order.
- Buy a rebuilt module outright. Sold separately as the rebuilt DD15 ECM sold outright, built from the same part numbers as this page. Each module is programmed to your engine before it ships. It costs more than a repair, and your old module, the core, goes back to us afterwards in exchange.
- A rebuilt unit with a refundable core deposit up front. Not how we work. Where it is offered, cash is held on top of the unit price until the old core is inspected and accepted.
- A new module from the dealer. The part price is only part of the cost. A new module still has to be programmed after it is fitted, which means a dealer appointment.
- A used or salvage module. No rebuild and no testing, and it still has to be programmed to your engine. Whatever cover comes with it belongs to the seller rather than to a rebuild process.
How long a DD15 repair keeps your truck down
Once your module reaches the facility, allow 3 to 5 business days on the bench, then 1 to 3 business days for delivery back to you. Transit time in each direction sits on top of that and depends where you are shipping from, so a coast-to-coast send-in runs longer than the bench figure alone.
My engine cranks but will not start. Is that the ECM?
It can be, but a no-start has several possible causes and the module is only one of them. The fault code is what narrows it down. Detroit service information published through NHTSA records fault code SPN 108 FMI 3 as a barometric pressure sensor circuit failing high, and notes that this sensor sits inside the MCM, so where that code is the only one present the module itself is implicated.
Could it be the wiring rather than the module?
Yes, and it is worth ruling out first. Detroit service information published through NHTSA records fault code SPN 625 FMI 9, where the CAN link between the CPC and the MCM receives no data. That fault sits on the link between two modules, so a communication failure does not by itself mean the module has failed. Reading the codes and checking the harness first can save you a repair you did not need.
My part number is not on your list. Can you still repair it?
Often, yes. The seven numbers listed are the ones published against this page, and the Detroit DD15 range runs wider than that. The part number selector carries a "Not Known" option for a module whose label has been damaged or painted over. Before you order against a number you cannot read or cannot find, talk to a specialist rather than guessing.
Is the DD13 module the same as the DD15 module?
Sometimes, which is exactly why the part number matters more than the engine badge. EPA heavy-duty certification records list single Detroit engine control module part numbers certified across DD13, DD15 and DD16 engines, so those platforms do share modules in some model years. Match the number printed on your own module rather than assuming from the engine.
Is there a core charge on a repair?
No. A core deposit exists because a seller is shipping you their unit and wants yours back in exchange. On this page the module on the bench is already yours, so there is nothing to hold a deposit against. A core only enters the picture on the buy-outright DD15 page, where a rebuilt module ships out to you and your old one goes back the other way.
HOW DOES IT WORK?

Frequently asked questions
How does the free warranty work?
We are confident in the quality of our repairs, so we back every repair with a free lifetime warranty.
Will I be able to return my computer in the event it doesn't work?
Yes. If you are not satisfied with the repair within the 60 day period, you will be able to get a refund.
How quickly will you ship my computer?
Please allow 3-5 business days for us to repair your core once it has been received at our facility. Please allow 1-3 additional business days for delivery.
What if it can't be repaired?
It's rare, but it happens. If we can't save your unit, every dollar you paid is applied to a rebuilt replacement — you'd pay for that replacement either way, so there's no downside to trying the repair first. Worst case, you end up exactly where you started.
