This 5.9 Cummins PCM repair covers the firewall module, not the one on the engine
Diesel ECM Exchange services the firewall-mounted PCM on a 1998 to 2002 Dodge Ram 5.9L Cummins, and every buyable option here says so by ending with the word Firewall. That word is the check to run before anything comes off the truck.

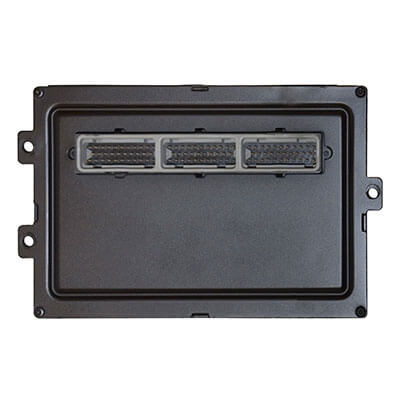

A 1998 to 2002 Ram carries two separate computers. One is mounted on the engine. The other sits on the passenger side firewall behind the air cleaner assembly, and that firewall unit is what this service covers. If the naming has you stuck, our guide to the difference between an ECM, an ECU, a PCM and a FICM separates the four.
Search for a 5.9 Cummins PCM repair and most of what comes back is a service for the engine-mounted module, sold under PCM wording. Reading the mounting position off your own truck settles it.
The span runs 1998 to 2002, and no part number comes into it
Five build years can be ordered here, 1998 through 2002, one option each. The year is what you select, and there is no number to find on the module first.
No part number appears in this listing and none is required. This branch of the catalogue carries no numbers at all, so there is no label to hunt for and no casting mark to decode.
The span has a hard edge at each end. A 2003 or newer Ram has no firewall PCM repair here, and the selector holds no option outside 1998 to 2002, nor any fallback for a year you cannot confirm. The build year has to be settled before an order will go through. The rest of the range sits on the Dodge diesel computers hub.
What a firewall PCM goes through here, and the four checks it has to clear
Your board does not ship until four separate checks come back clean. One confirms it still communicates. One confirms it will accept a program. A third confirms that program and its parameters stay stored afterwards rather than only loading. The last reads its voltages.
The work ahead of those checks happens at component level and reaches past whichever part died. Whatever failed is replaced and resoldered. Parts with a record of going on this kind of board are changed in the same pass. Cold joints get reflowed.
Those four checks are what to weigh. Fitting a replacement component establishes nothing by itself, and a board that powers up has not shown it will hold a program. The board work at Diesel ECM Exchange is done in-house by soldering technicians, in a family-owned business whose whole trade is diesel control modules.
How long the Ram sits without its PCM, counted from the day you order
Both published windows are counted from the module's arrival here, not from the day you order. Allow 3 to 5 business days on the bench once it lands, then 1 to 3 more for the journey back.
Neither window covers the trip in. That leg starts wherever your Ram happens to be, so no figure for it is published here. An order is placed first and the pre-paid label follows, so the module never travels without an order behind it.
The truck is therefore down for the round trip, not the bench window alone, which is the clearest difference between repairing the module you own and buying one outright.
Three routes for a failed firewall PCM, compared on downtime and on cover
Three routes exist for a dead 1998 to 2002 firewall PCM. They differ in what happens to the truck, and in who stands behind the unit.
- Repairing the one you own. You get back the unit you sent, rebuilt rather than replaced. The trade is the round trip.
- A rebuilt unit bought outright. A rebuilt 1998-2002 Ram 5.9L firewall PCM arrives programmed for your truck, and your old unit goes back as the core. It costs more than this repair.
- A dealer or second-hand unit. Confirm the part match, programming required, test history, warranty and total cost with its seller before comparing it with a repair.
The first two are both live here, so this is a choice between two pages rather than two companies. Every repair carries a free lifetime warranty, with terms on our warranty page, and a 60-day money back guarantee, with its window and conditions in the return policy.
Where this page stops and the ECM page starts
This page covers the firewall PCM across 1998 to 2002. 1998-2007 Dodge Ram 5.9L Cummins ECM repair covers the engine-mounted module, over a span running past 2002 into years this page does not reach.
Both computers are present on a 1998 to 2002 truck and either can fail, so the build year alone cannot tell you which page you want. The years overlap. The mounting positions do not.
What routes you is the mounting position. Off the firewall, this is the page. Off the engine, the other one is.
Is there a different firewall PCM for a manual gearbox than for an automatic?
Some sellers list this part as separate automatic and manual versions. This service does not split it that way. The five options on this page differ by build year and by nothing else, so there is no gearbox choice to make here and no transmission code to read off anything before you order.
Would a repair kit do the same job?
A kit replaces parts and stops there. It cannot confirm the board still communicates. It cannot confirm the board will take a program. It cannot confirm the program and its parameters stay stored rather than only loading. It cannot read the voltages either. Those four answers are what the bench adds, and they are why a board leaves here knowing it works rather than hoping.
Do I need to find somewhere local, or does this work entirely by post?
This is a send-in service. After you order we contact you with a pre-paid shipping label, and the repaired module is shipped back to you. The service covers the United States, including Alaska and Hawaii.
What happens if my board turns out to be too far gone to repair?
If the module cannot be repaired, our return policy sets out the terms. The order has a 60-day money back guarantee, subject to those terms.
What do I do if I cannot pin down my truck's build year?
This selector has no unknown-year option, so a year has to be settled before an order can go through. Rather than picking the closest-looking one, use the phone number or the contact page on this site and ask. An unmatched order costs more time than the question does.
If both computers on my truck need doing, is that one order or two?
They are two services on two pages, each with its own selector. The firewall PCM is ordered here by build year. The engine-mounted module is ordered on the ECM repair page, which runs from 1998 to 2007. Ask us for shipping instructions if you are ordering both.
HOW DOES IT WORK?

Frequently asked questions
How does the free warranty work?
We are confident in the quality of our repairs, so we back every repair with a free lifetime warranty.
Will I be able to return my computer in the event it doesn't work?
Yes. If you are not satisfied with the repair within the 60 day period, you will be able to get a refund.
How quickly will you ship my computer?
Please allow 3-5 business days for us to repair your core once it has been received at our facility. Please allow 1-3 additional business days for delivery.
What if it can't be repaired?
It's rare, but it happens. If we can't save your unit, every dollar you paid is applied to a rebuilt replacement — you'd pay for that replacement either way, so there's no downside to trying the repair first. Worst case, you end up exactly where you started.
