Diesel IDM

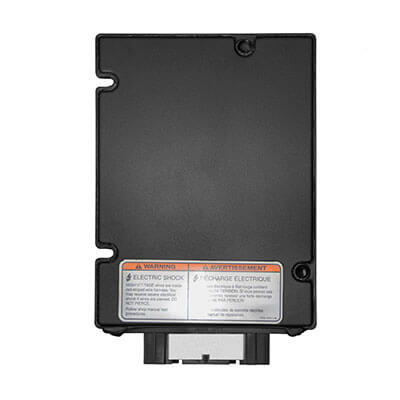

Remanufactured Ford Diesel IDM

SELECT YEAR

This Module is Plug-and-Play:
Just Put it in and Drive, no need to visit the dealer!


Sale: $795.00
$1099.00
YOU SAVE $304.00
In Stock
Available Quantity:



Lifetime Warranty
60-day Money Back Guarantee
Fast, Free Shipping
Reliable Rebuilt and tested in the USA
We accept
Visa Mastercard American Express Discover Google Pay Apple Pay

A rebuilt Ford diesel IDM for 1995 to 2003 trucks and vans

This page sells a rebuilt injector driver module for Ford diesel F-Series trucks and E-Series vans built from 1995 through 2003. The Ford IDM sits between the engine computer and the injectors. It takes the low-voltage command to fire and supplies the high voltage that does it, around 115 volts on the injector wires with the engine running.

You buy the remanufactured unit outright here. Your failed one goes back afterwards as the core.

Ford changed this module part way through the range

The Ford diesel IDM is not one module across all nine years. The part changed at the 1999 model year, and the early and late versions are different units. Color is the quickest tell on an original: the early module is bare aluminum or silver, the later one is black.

That split is where this range costs people money. Plenty of sellers stock only the later part, and sending an early module back to one of those as your core can mean losing the core credit on the order.

You are not asked to identify any of that here. This page carries no part numbers and does not ask for one. Pick your model year and body style, and your VIN is used after checkout to match the correct unit before it is programmed. Working out which side of the change your truck falls on is not your job here.

Every year from 1995 to 2003, in both F-Series and E-Series

Eighteen options sit in the picker: nine model years, each in two body styles.

  • Ford F-Series Truck Diesel IDM: 1995 through 2003
  • Ford E-Series Van Diesel IDM: 1995 through 2003

No year is missing from either list, and none is truck-only. Your year and your body style together are the entire selection. Outside 1995 to 2003 there is nothing here to select, so talk to a specialist rather than settling for the closest year on the list.

What happens to a Ford diesel IDM on the bench

Each unit is repaired at board level before it is programmed. Components that failed are replaced and resoldered, along with the ones these modules are known to lose over time rather than only the one that died. Joints that went cold get reflowed.

Then it goes on test. Communication, programming, whether the values written to it are still present on a read-back, and voltage: all four are checked before the unit leaves the bench. Diesel ECM Exchange rebuilds diesel control modules and does not work on anything else, for the people running these trucks and the shops that diagnose them, and every unit is rebuilt and programmed by our own team before it ships.

Your old IDM is the core, and nothing is held against it up front

Your failed module is the core. It travels back after the replacement is fitted, and returning it switches on the free lifetime warranty. Nothing is held against that core when you order. Cover and the return deadline both live on the warranty terms page.

Three other routes exist, each trading away something different:

  • An exchange that charges a core deposit at checkout. You put that money down on top of the unit price and wait on it until your old module has been inspected and accepted
  • A new module from a dealer. The part price is only part of it, because the module turns up uncoded and a booked visit to sort that out is still in front of you
  • A used or salvage module. It comes off another vehicle exactly as it was, with no board work and no bench check behind it, and it still has to be coded to yours. Whatever cover it carries stops with whoever sold it

The order is also covered by the 60-day money back guarantee. Where that does and does not apply is on our return policy.

IDM, ECM/PCM or FICM: which Ford diesel module this page sells

This page sells the injector driver module only. Two other Ford diesel modules sit on their own pages, and the model years overlap:

  • This page, the IDM: 1995 through 2003, F-Series trucks and E-Series vans
  • Ford Diesel ECM/PCM: 1996 through 2003, F-Series trucks
  • Ford Diesel FICM: 2003 through 2009, the only Ford page here carrying the Excursion, and a send-in repair rather than an outright purchase

Eight model years appear on both this page and the ECM/PCM page, and 2003 lands on all three, so the model year alone leaves you no better off. What narrows it is knowing which module quit. The rest of the Ford diesel modules carried here covers the other computers on these vehicles.

What does a failing IDM actually do to the truck?

A failing IDM shows up as rough idle, misfires, intermittent loss of power, hard starting, or a complete no-start. Fault codes on the injector control circuits often come with it. None of that proves the module on its own, because every one of them can come from somewhere else on a 7.3L. Get the diagnosis confirmed before the module comes off the vehicle and an order goes in.

Where does the IDM sit, and why do these fail?

The IDM sits under the hood on the driver's side inner fender. That position is behind the most common failure on these modules: water gets past the weather seal or a damaged outer cover, and corrosion does the rest inside the case. Look at the outside of your module before you order. Corrosion, or paint peeling off the case, points to water having been in there already.

Is there anything I should check before I fit a replacement?

Yes. Check the injector wiring first. The connectors molded into the valve cover gaskets sit in hot oil, and over time they go brittle, crack, and short the wires together.

That shorting can take out a module by itself, so a fault left there will do to a replacement exactly what it did to the original. Find it before the new module goes in, not after.

The scan tool shows P1298. Is the IDM definitely the problem?

Not on its own. P1298 is the trouble code tied to injector driver module failure on these trucks, so it does point here. The same code is also documented setting falsely, with the malfunction indicator lamp lit and no module fault behind it. That makes P1298 a strong lead rather than proof, and it is worth confirming before you order.

My 7.3L is a 1994. Why does the year list start at 1995?

Because 1995 is where this range starts. The options run from 1995 to 2003 in both the F-Series truck and the E-Series van, and there is no 1994 option to select. Anything outside that span needs a conversation first. The nearest listed year is a different vehicle, not a near-enough one.

Is this an upgraded or high-output IDM?

No. This is a rebuilt replacement for a stock vehicle, not a performance part. It restores what the original module did rather than raising output. One thing to know before ordering if your truck is modified: our warranty excludes engine swaps and performance work, so a build heading that way sits outside what this covers.

Do I need the IDM or the ECM/PCM? My truck has both.

Tell them apart by job, not by year. The IDM drives the injectors, taking the signal from the engine computer and supplying the voltage that fires them. The ECM/PCM is that engine computer.

Both pages carry most of the same model years, so the year cannot decide it for you. Identify the failed module first, and the right page follows from that.
